In modern industry, nickel-based alloys are highly valued for their exceptional performance. This material is widely used in aerospace, petrochemical, nuclear energy, and other fields. Its high-temperature strength, corrosion resistance, and mechanical properties make it the preferred material for many critical components. Among numerous processing methods, free forging has become an important means of producing high-quality nickel-based alloy forgings due to its high flexibility and strong adaptability. This article will provide a detailed introduction to the entire process of free forging of nickel-based alloys, as well as the related quality standards and advantages.
Free forging of nickel-based alloys is a complex and precise process, covering every stage from careful raw material selection to rigorous final inspection. Each step is crucial because together they determine the quality and performance of the final product.
The first step in free forging of nickel-based alloys is the selection of raw materials. Choosing high-purity nickel-based alloy raw materials is critical, such as commonly used Inconel 617 or GH4169. The main components of these alloys include nickel, chromium, cobalt, iron, and some trace elements. The proportions of these components must meet strict standards to ensure the performance of the final forgings. Before use, the raw materials also need to undergo rigorous heat treatment to eliminate internal stresses, improve forgeability, and lay a solid foundation for subsequent processing steps.
Melting is a key stage in the processing of nickel-based alloys. Typically, electric arc furnaces or induction furnaces are used for melting. During this process, strict control of melting temperature and atmosphere is very important because it prevents oxidation of alloy elements and ensures the purity of the alloy. After melting, chemical composition analysis is required to ensure that the alloy fully meets the design requirements. Once the composition analysis is qualified, the process can proceed to the next step.
According to the shape of the forging, designing a suitable casting mold is necessary. The mold material must have high-temperature resistance and corrosion resistance to ensure stable use in high-temperature environments. When pouring molten metal into the preheated mold, the pouring speed must be controlled to reduce the generation of bubbles and defects. After the casting cools, necessary pre-processing, such as removing burrs and trimming, is required to ensure a clean and smooth casting surface.
Preheating before forging is a very critical step in the entire forging process. Heating the casting to between 800–1300°C can significantly improve the material's plasticity while reducing deformation resistance during forging. During preheating, it is essential to ensure uniform temperature distribution to avoid local overheating or overcooling, as this may lead to cracks and affect the quality of the final product.

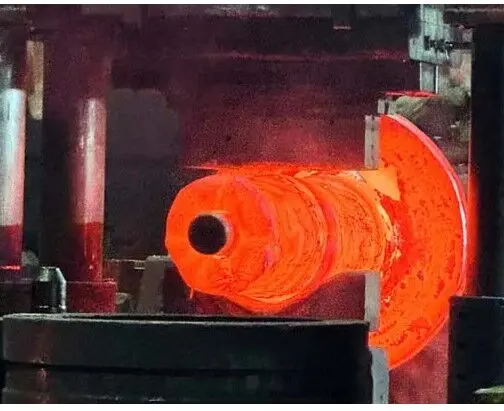

During the forging stage, the preheated material is deformed using a forging hammer or hydraulic press through operations such as extrusion and stretching to achieve the required shape and dimensions. During forging, the deformation rate and forging temperature must be strictly controlled. Excessive forging can lead to material loss and performance degradation, whereas proper control ensures that the material's properties are fully utilized. Through precise forging processes and mold design, the final product's shape and dimensions can closely match design requirements, thereby reducing the material required for subsequent processing and improving production efficiency.
After forging, the forgings need to undergo annealing. The purpose of annealing is to eliminate residual stresses generated during forging and to improve the toughness and plasticity of the forgings. The annealing temperature and duration need to be adjusted according to the specific type of alloy to ensure the optimal treatment effect.
After annealing, the forgings require finishing to achieve the required precision and surface quality. Finishing includes various processes such as turning, milling, and grinding, which need to be selected and adjusted according to specific dimensional requirements and surface quality standards. During machining, attention must be paid to parameters such as cutting force, cutting temperature, and tool wear to optimize the machining process and improve quality.
Heat treatment is a key step to enhance the performance of nickel-based alloy forgings. Through solution treatment and aging treatment, the alloy's microstructure can be optimized, improving its mechanical properties and corrosion resistance. Solution treatment usually involves heating the forgings to 1200–1300°C, holding for a certain period, and then rapidly quenching; aging treatment is carried out at a lower temperature to increase the alloy's strength and hardness.
Finally, rigorous quality inspection is an important step to ensure the quality of nickel-based alloy free forgings. Quality inspection includes dimensional accuracy, surface quality, and microstructure examination to ensure the forgings meet application requirements. Ultrasonic, X-ray, and other methods are used to detect internal defects, ensuring the reliability of the forgings and guaranteeing the performance and safety of the final product.
During the free forging of nickel-based alloys, strict standards must be followed to ensure the quality and performance of the forgings. These standards include raw material standards, process parameter standards, and quality inspection standards.
Nickel-based alloy materials should meet the relevant national or international standards, such as ASTM B564, ASTM B637 in the United States, or EN 10222-3, EN 10269 in Europe. These standards specify the chemical composition, mechanical properties, physical properties, and other basic requirements of nickel-based alloys, providing high-quality raw materials for free forging.
Forging temperature, forging pressure, forging speed, and subsequent treatments directly affect the performance and quality of nickel-based alloy forgings. The forging temperature should be chosen within the plastic deformation range of the alloy to ensure uniformity and density. Forging pressure should be moderate to avoid cracks or deformation. Controlling forging speed balances shape changes and crack risks. After forging, appropriate heat treatment is also required to relieve internal stresses and improve material performance.
Quality inspection includes multiple aspects such as appearance, dimensional measurement, chemical composition analysis, and mechanical performance testing. These inspections comprehensively evaluate the forging's quality to ensure it meets design requirements and service conditions.
Nickel-based alloy free forgings have many significant advantages, making them a preferred material in many industrial fields.
They possess high precision, good fatigue resistance, and high strength. These characteristics allow them to withstand significant impact or heavy loads, making them suitable for equipment components under complex working conditions.
Free forging offers high flexibility, allowing adjustments according to different design requirements, producing forgings of various shapes and sizes. This flexibility improves production efficiency and reduces manufacturing costs.
Nickel-based alloy free forgings have high toughness, meaning they are not easily fractured under external impact. This is crucial for equipment requiring long-term stable operation.
Through precise forging processes and mold design, the shape and dimensions of the forgings can closely match design requirements, reducing material needed for subsequent processing and saving raw materials.
Forging disperses alloying elements or non-metallic inclusions, giving the forgings excellent chemical uniformity. This uniformity enhances overall material performance and reduces property differences caused by composition variations.
During forging, high temperature and pressure close internal defects such as pores, shrinkage, and cracks, improving structural integrity. This integrity enhances strength and durability, ensuring long-term stable operation of equipment.
A complete quality assurance system is established throughout the production of nickel-based alloy free forgings. From raw material selection to process control and final inspection, each step undergoes strict quality control to ensure reliable product quality.
Due to their excellent properties, nickel-based alloy free forgings are widely used across multiple fields.
Aerospace: In aerospace, they are used to manufacture engine components, airframe structures, and other critical parts. These components must withstand high temperatures, high pressures, and high loads. The high-temperature strength and fatigue resistance of nickel-based alloy forgings make them ideal.
Petrochemical Industry: In the petrochemical sector, they are used for pipelines, valves, pumps, and other equipment operating in high-temperature, high-pressure, and corrosive environments. The corrosion resistance and mechanical performance of nickel-based alloy forgings meet these stringent conditions.
Nuclear Energy: In nuclear applications, they are used to manufacture reactor components, fuel elements, and other critical parts that operate stably under high temperature, high pressure, and radiation. The excellent performance of nickel-based alloy forgings fulfills these requirements.
Free forging of nickel-based alloys is an efficient, flexible, and reliable processing method capable of producing high-quality forgings. Through strict raw material selection, precise process control, and comprehensive quality inspection, nickel-based alloy free forgings meet the demanding requirements of aerospace, petrochemical, nuclear, and other fields. Their excellent mechanical properties, forging flexibility, high toughness, and material savings make them highly competitive in the market. With ongoing advances in modern forging technology, nickel-based alloy free forging will continue to play a critical role in industrial production, providing reliable material support for equipment operating under complex conditions.
